Repalcement Real Carbon Fiber Front Door Trim Panel for Tesla Model 3 / Y 2021-2023
Couldn't load pickup availability

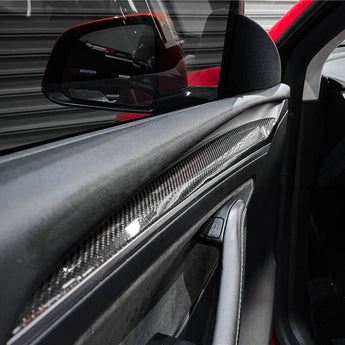

Genuine Carbon Fiber Front Door Trim Replacement for Tesla Model 3 & Model Y
Replace the original front-door decorative trim with genuine molded carbon fiber while retaining the factory-style mounting architecture for a cleaner, lighter and more performance-inspired interior finish.
Genuine Carbon Fiber
Made from real molded carbon fiber rather than printed ABS, vinyl wrap or a carbon-look plastic overlay.
True Replacement Design
Removes the original front-door trim instead of stacking a second decorative cover on top, preserving a cleaner factory-style profile.
Glossy or Matte Finish
Choose a reflective glossy finish for stronger weave depth or a subdued matte finish for a lower-reflection OEM-style look.
Why This Carbon Fiber Door Trim Stands Out
Visible woven carbon fiber gives the cabin authentic texture and depth that cannot be reproduced by printed carbon-pattern plastic.
The rear structure retains multiple molded attachment points designed to engage with the original front-door trim mounting locations.
Because the original decorative strip is removed, the finished installation avoids the extra thickness often created by an overlay-style accessory.
Current manufacturer documentation states that the molded carbon surface receives three coats of UV protective finish.
Slight weave-direction differences can occur between hand-laid molded carbon pieces and are part of the manufacturing character of genuine carbon fiber.
Replacement vs. Overlay
This Product:
Original door trim is removed and the carbon-fiber part
takes its place using factory-style attachment points.
Typical Overlay:
A thin decorative shell is attached on top of the original
trim using double-sided adhesive.
Genuine Carbon Fiber from Front to Back
OEM-Style Front Door Trim Replacement
Compare your front-door upper trim with the product images. This is particularly important for 2020 and early-production vehicles because source-year information is inconsistent.
Work carefully around the door panel and adjacent surfaces to avoid scratching the soft-touch trim during removal.
Carefully release the original upper decorative trim from its factory attachment points rather than pulling sharply from one end.
Match each factory-style mounting point on the carbon-fiber replacement with the corresponding position on the door.
Apply controlled pressure along the length of the trim until each attachment point is correctly seated and the surrounding panel gaps appear even.
Confirm the trim is fully secured, does not lift at either end and does not interfere with door operation.
The current technical installation section states that the original trim is removed and the carbon-fiber replacement installs using the existing fixture locations. No 3M double-sided tape is specified for the replacement process.
The latest technical specification lists Model 3 2020–2023.10 and Model Y 2020–2025.03, while other current source text describes the product as 2021+. If your vehicle is a 2020 or early-production example, compare the original door-trim shape with the product images before ordering.
Model 3 Highland and Model Y Juniper use redesigned interior door-trim structures and require their own dedicated carbon-fiber parts.
Specifications
| Attribute | Details |
|---|---|
| Product | Genuine Carbon Fiber Front Door Trim Replacement |
| Product Type | Replacement Trim — Not an Overlay Cover |
| Material | Genuine Molded Carbon Fiber |
| Carbon Construction | Manufacturer-Described Hand-Laid Molded Carbon Fiber |
| Finish Options | Glossy Carbon Fiber / Matte Carbon Fiber |
| Manufacturer UV Treatment | 3-Coat UV Protective Finish |
| Model 3 Fitment | Current Manufacturer Spec: 2020–2023.10 |
| Model Y Fitment | Current Manufacturer Spec: 2020–2025.03 |
| 2020 / Early-Vehicle Fitment | Verify Original Front-Door Trim Shape Before Ordering |
| Model 3 Highland | Not Compatible |
| Model Y Juniper | Not Compatible |
| Installation Location | Upper Front Door Decorative Trim |
| Installation Method | Remove Original Trim and Install Replacement at OEM-Style Fixture Points |
| 3M Adhesive | Not Required by Current Replacement Installation |
| Drilling | Not Required |
| Electrical Connection | None |
| Published Weight | Not Published |
| Published Dimensions | Not Published |
| Package Contents | Front Door Carbon Fiber Trim Replacement Set — Current Source Text Lists “1pc,” While Product Imagery Shows Left/Right Trim Pieces; Exact Packing Count Should Be Confirmed Before Fulfillment |
Quick Answers
Is this genuine carbon fiber or carbon-look ABS? +
It is listed as genuine molded carbon fiber. It is not described as ABS with a printed carbon-fiber texture.
Is this an overlay that sticks over my original door trim? +
No. The current manufacturer installation describes this as a replacement part. The original decorative trim is removed and the carbon-fiber trim installs in its place.
Does installation require double-sided tape? +
The current technical installation section says no 3M tape is required. Product imagery shows factory-style mounting points on the rear of the replacement trim.
Why does some older source text mention an adhesive liner? +
That note conflicts with the product-specific replacement instructions and with the rear mounting structure shown in current product imagery. The product-specific installation method is therefore treated as the more reliable reference.
Which Model 3 years fit? +
The current manufacturer specification lists Model 3 2020–2023.10. Because other source text starts at 2021, owners of 2020 or early-production vehicles should compare their original front-door trim shape with the product imagery.
Which Model Y years fit? +
The current manufacturer specification lists Model Y 2020–2025.03. Early vehicles should still be checked by original trim shape because the source also uses 2021+ wording elsewhere.
Does it fit Model 3 Highland? +
No. Model 3 Highland uses a redesigned door-trim structure.
Does it fit Model Y Juniper? +
No. Model Y Juniper requires a dedicated Juniper-specific door trim product.
What is the difference between glossy and matte? +
Glossy carbon fiber has a reflective clear surface that emphasizes weave depth. Matte carbon fiber has lower reflections and a more subdued appearance.
Will the carbon weave be perfectly identical on every piece? +
Not necessarily. The manufacturer identifies the product as hand-laid molded carbon fiber, so small natural differences in weave direction or pattern alignment may occur.
Does it have UV protection? +
The manufacturer currently states that the molded carbon fiber receives three coats of UV protective finish. Normal long-term sun exposure can still affect carbon-fiber finishes, so regular interior UV protection and cleaning are recommended.
Is drilling required? +
No drilling is described. The replacement is designed around the existing door-trim mounting locations.
Do I need professional installation? +
The manufacturer describes the replacement as straightforward, but care is required when releasing the original door trim and its clips. Professional installation is reasonable if you are not comfortable removing interior trim.
How many pieces are included? +
Current source text labels the package as “1pc,” while the product gallery consistently shows left and right front-door trim pieces and no left/right purchasing option is offered. The exact packing count should therefore be confirmed before fulfillment.
Are dimensions or weight published? +
No verified overall dimensions or product weight are currently published, so this description does not invent them.
