NEMA 5-20 Mobile Charger Adapter - 14-Inch | Tesla Gen 2 & Gen 3

$34.99
Shipping calculated at checkout.

📦
Ships Directly From Lenz Charging Solutions
This product is sold through EVMIZE and ships directly from our partner, Lenz Charging Solutions. Your purchase is completed securely through EVMIZE.

ℹ️ DESCRIPTION

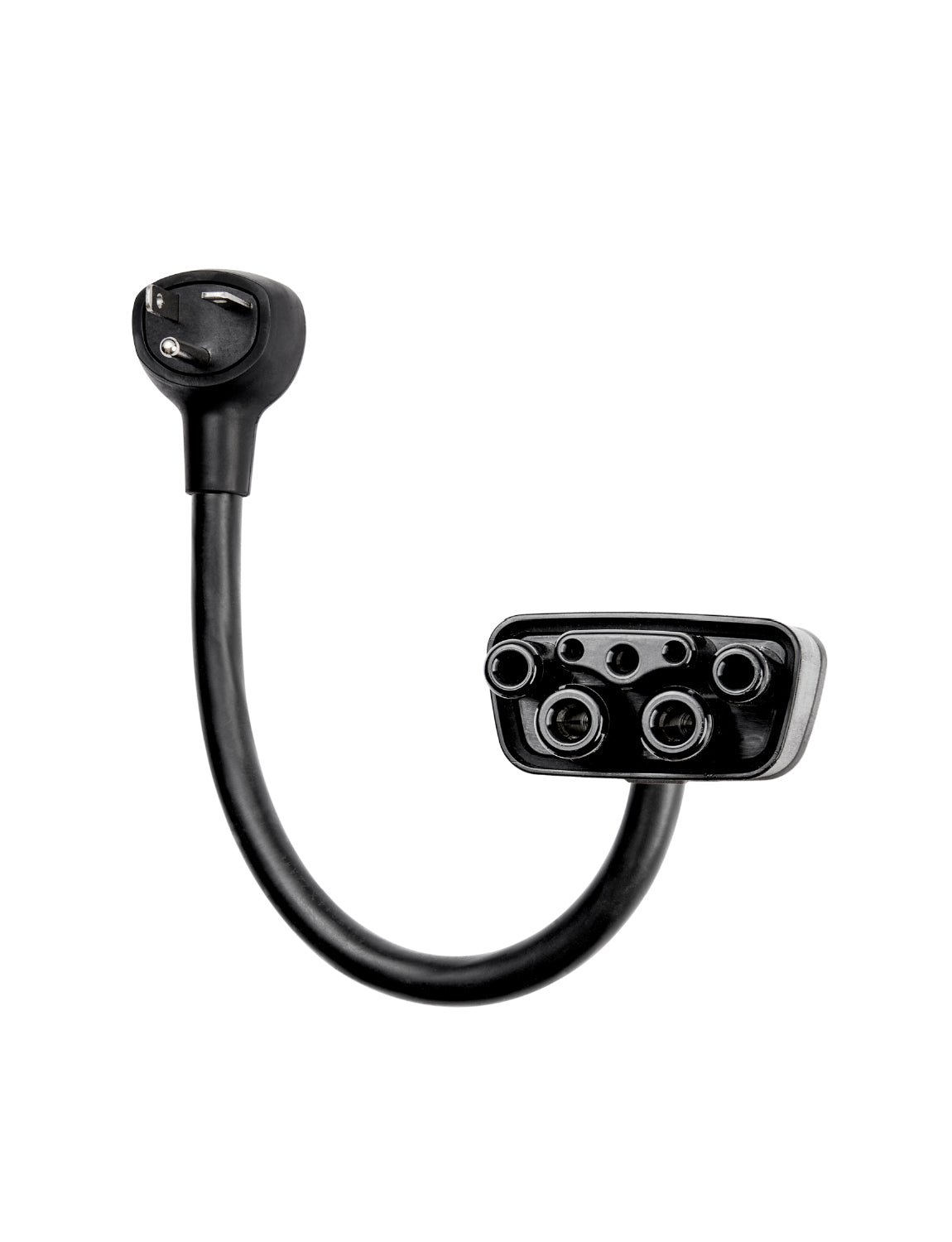

Connect a compatible Tesla Gen 2 or Gen 3 Mobile Charger to a correctly rated NEMA 5-20 receptacle with this LENZ adapter lead. Its 14-inch end-to-end design provides a convenient plug arrangement for a dedicated or otherwise appropriately rated 120V 20A NEMA 5-20 outlet. This is a detachable outlet adapter, not a complete EV charger.

The NEMA 5-20 configuration is intended for 120V service on a 20A branch circuit, with a maximum supported continuous charging current of 16A when used with a compatible Tesla Mobile Connector and suitable vehicle. This is Level 1 charging. The limit is based on the rated outlet, circuit and Tesla Mobile Connector—not simply the physical plug size.

LENZ describes nickel-plated contacts for corrosion resistance, an IP54-rated adapter assembly, and an integrated temperature sensor intended to help reduce unsafe heat buildup. The supplier states ETL listing control number 5026085 and conformity to UL 817 / CSA C22.2 No. 21; these are manufacturer-provided certification claims, not a substitute for verifying the exact product marking.

Important: This 120V NEMA 5-20 adapter provides Level 1 charging at up to 16A on a correctly wired 20A circuit. The original supplier copy incorrectly calls it Level 2; it does not change a 120V outlet into 240V power. LENZ advertises compatibility with the listed Tesla Gen 2 and Gen 3 Mobile Chargers, but not Gen 1 Mobile Connectors or Tesla Wall Connectors. Use only an intact, correctly wired receptacle and follow the actual charger's manual and applicable electrical requirements; the supplier lists a two-year warranty.

FITMENT & COMPATIBILITY

✅ Tesla Gen 2 and supplier-listed Gen 3 Mobile Chargers with matching removable outlet-adapter connection

✅ NEMA 5-20 120V outlet on a correctly wired 20A circuit

✅ Maximum continuous charging current 16A with a supported connector and vehicle

❌ Tesla Gen 1 Mobile Connectors and incompatible charger-side adapter interfaces

❌ Incorrect NEMA receptacles, altered/damaged outlets, or plug conversion without proper circuit wiring

WHAT'S INCLUDED❓

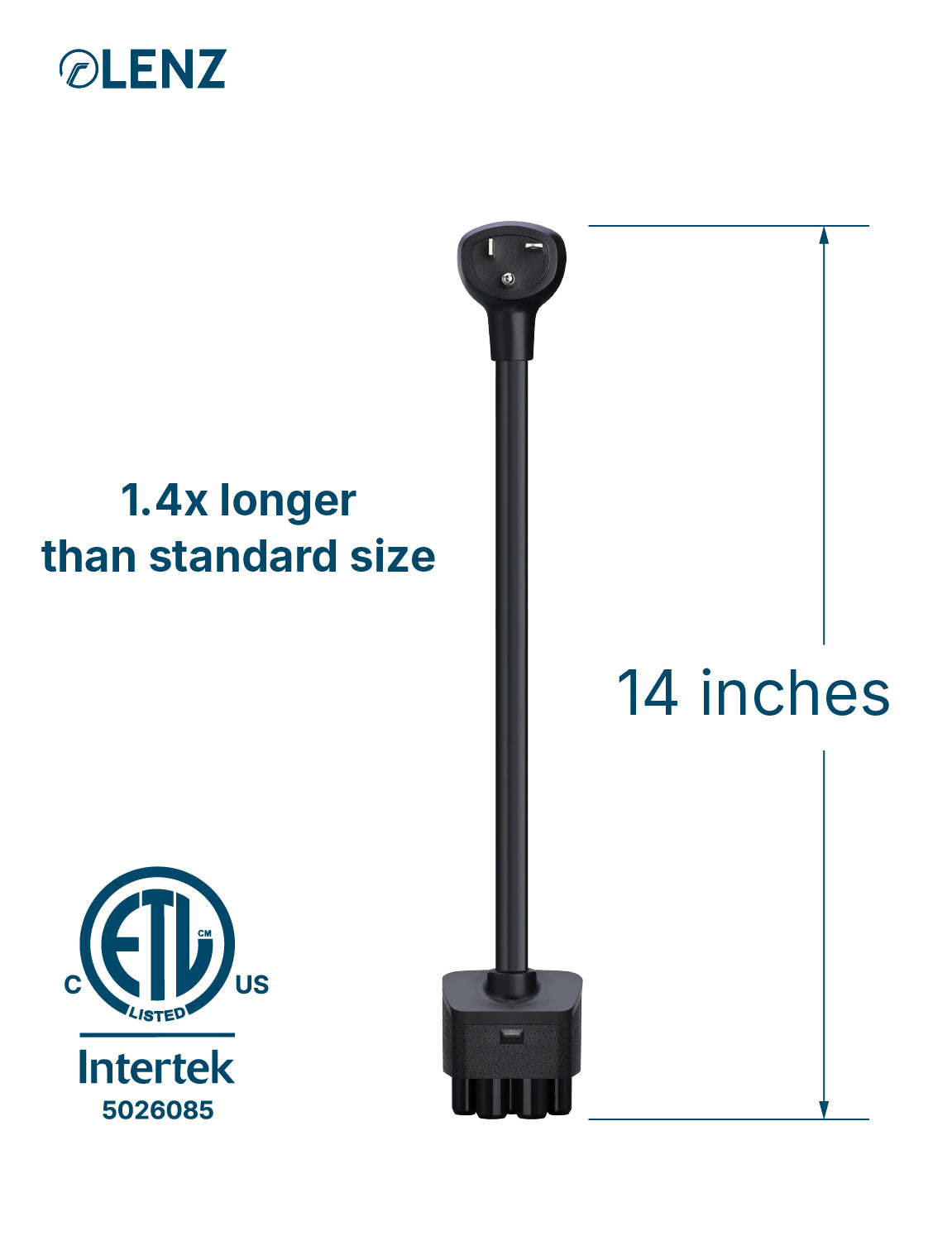

  • 1 × LENZ NEMA 5-20 adapter lead, approximately 14 inches end to end
  • ❌ Tesla Mobile Connector, charging cable to vehicle, and vehicle are not included

🟰 FEATURES

  • NEMA 5-20 plug configuration
  • 14-inch end-to-end adapter length
  • 120V rated outlet service
  • 20A rated branch-circuit type
  • Up to 16A continuous mobile charging
  • Supports Level 1 charging
  • Supplier-listed Tesla Gen 2 Mobile Charger fit
  • Supplier-listed Tesla Gen 3 Mobile Charger fit
  • Not compatible with Gen 1 Mobile Connector
  • Designed for a removable mobile-connector interface
  • Nickel-plated contact components
  • 120V outlet does not provide Level 2 charging
  • IP54 protection rating as claimed by LENZ
  • Integrated temperature monitoring
  • Supplier-stated ETL listing control 5026085
  • Supplier-stated UL 817 and CSA compliance
  • Two-year supplier warranty
  • Does not include the Mobile Connector

PRODUCT DOCUMENTATION

LENZ NEMA Adapter User Manual (PDF)
