Front Center LED Light Bar Headlight for Model Y Juniper | PN 2038294
Couldn't load pickup availability

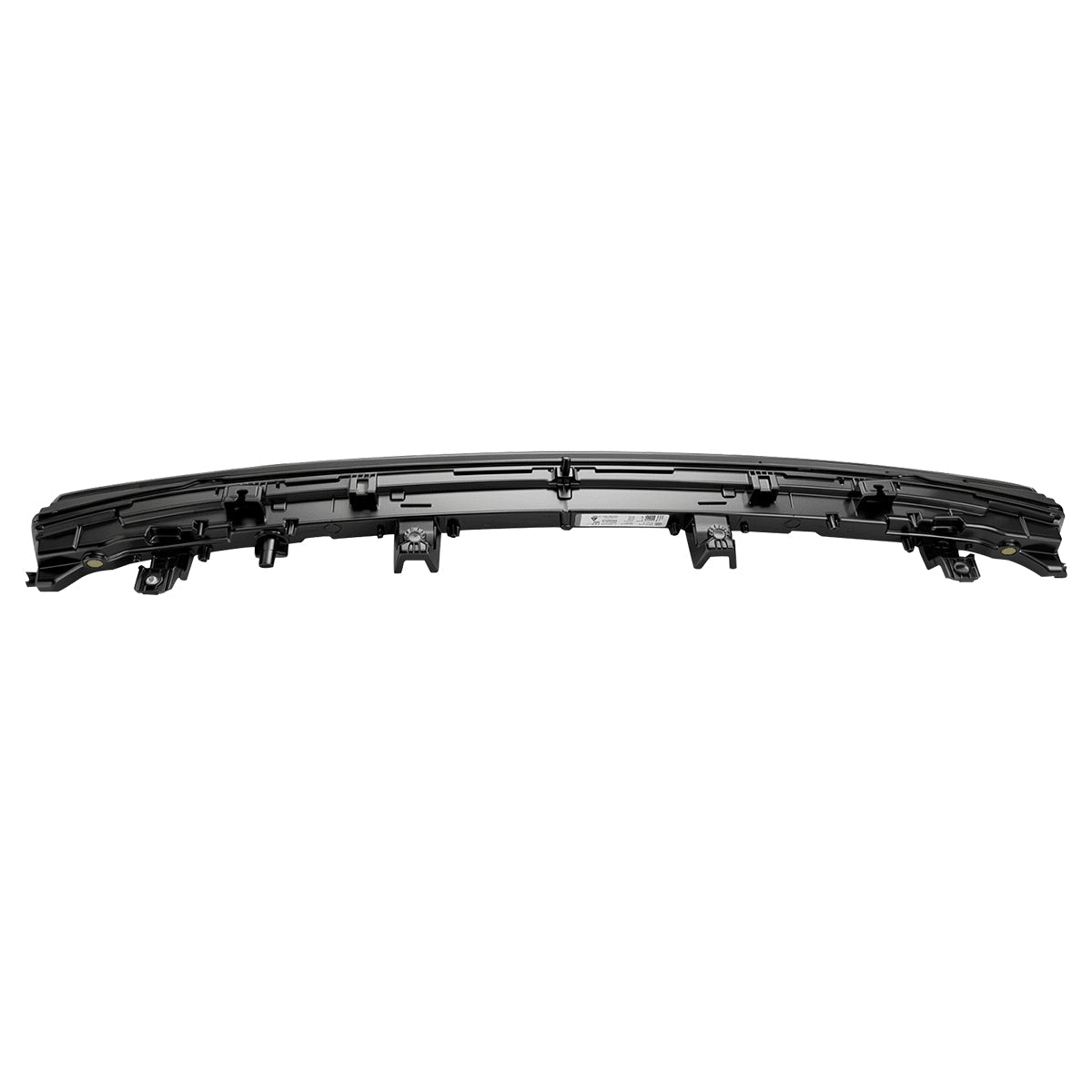

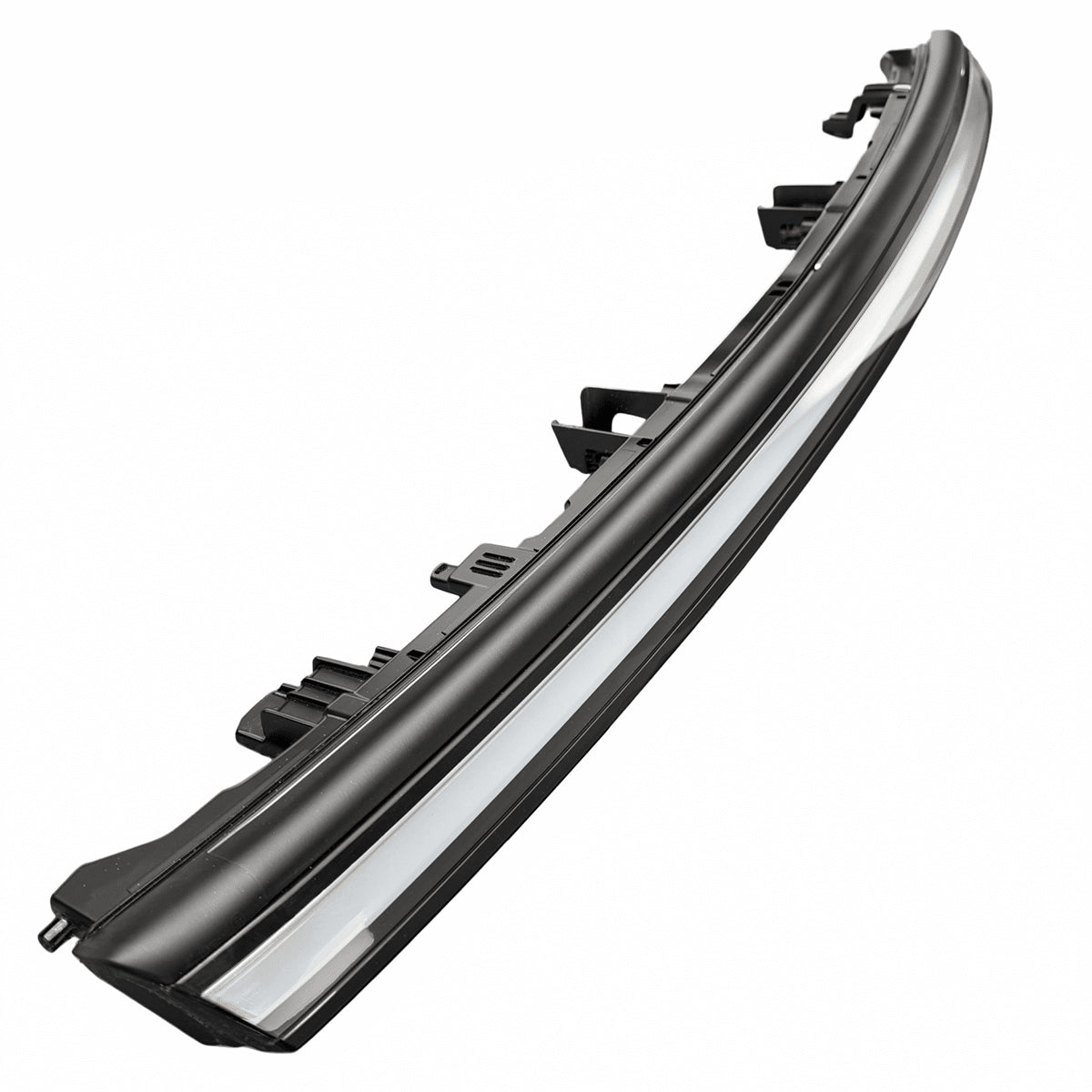

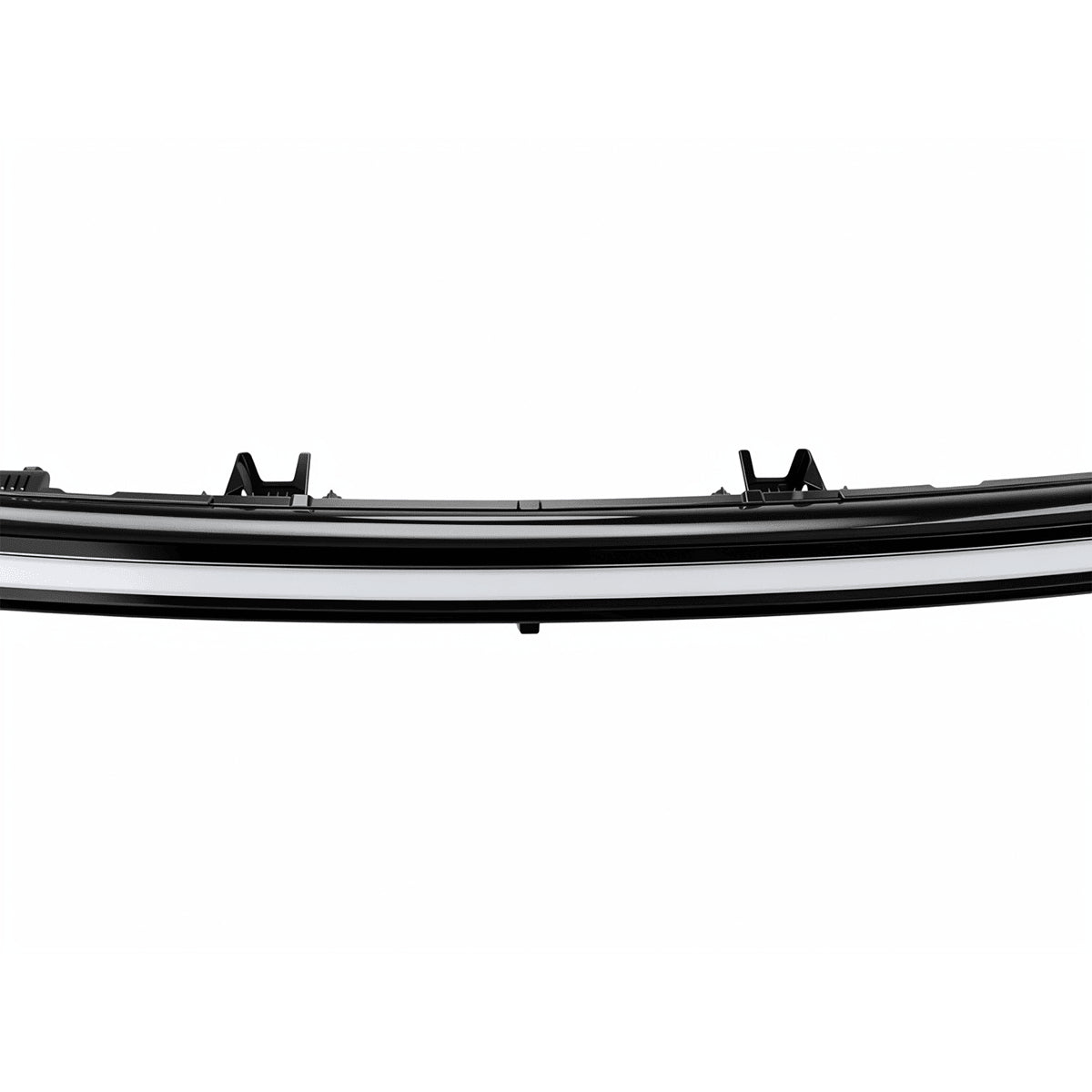

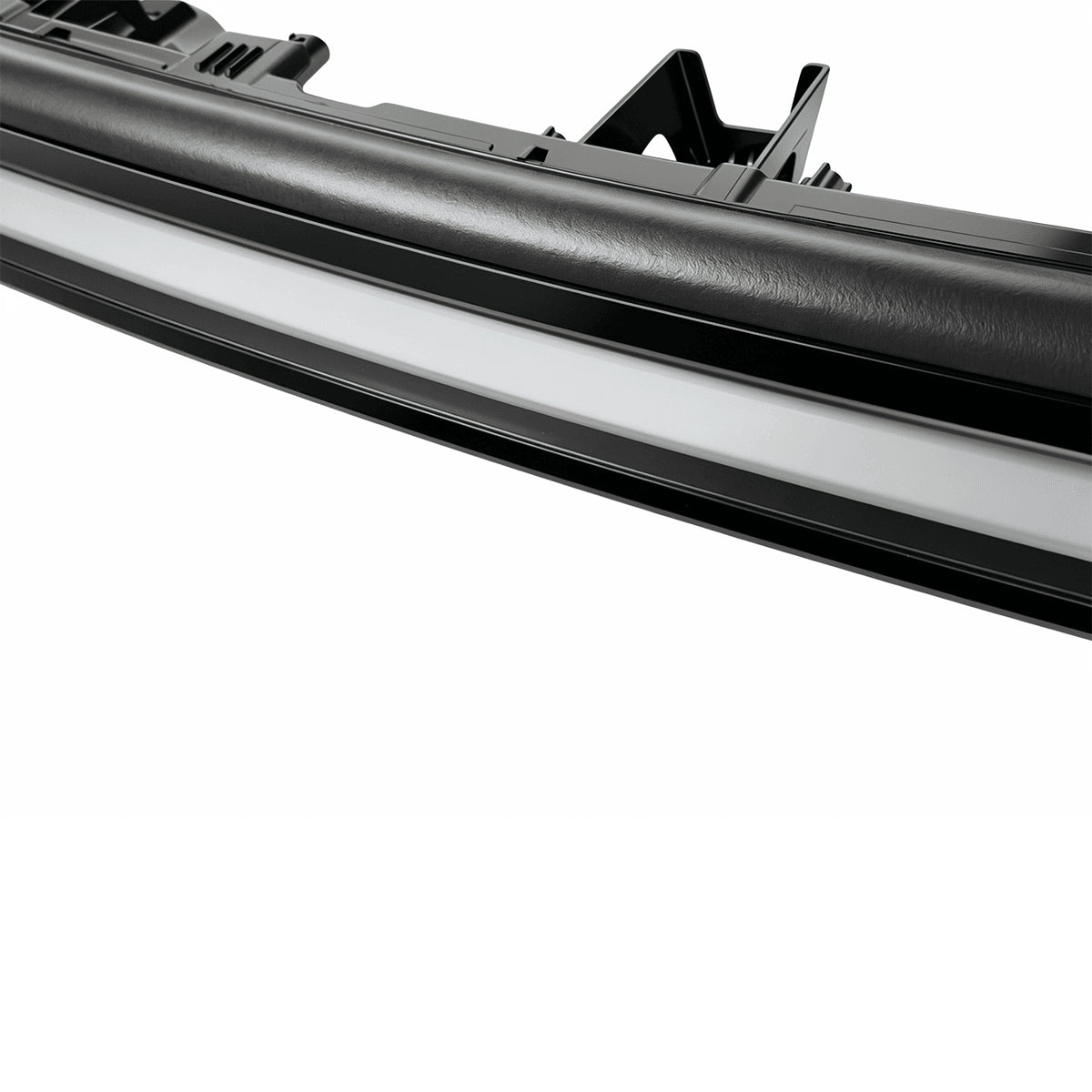

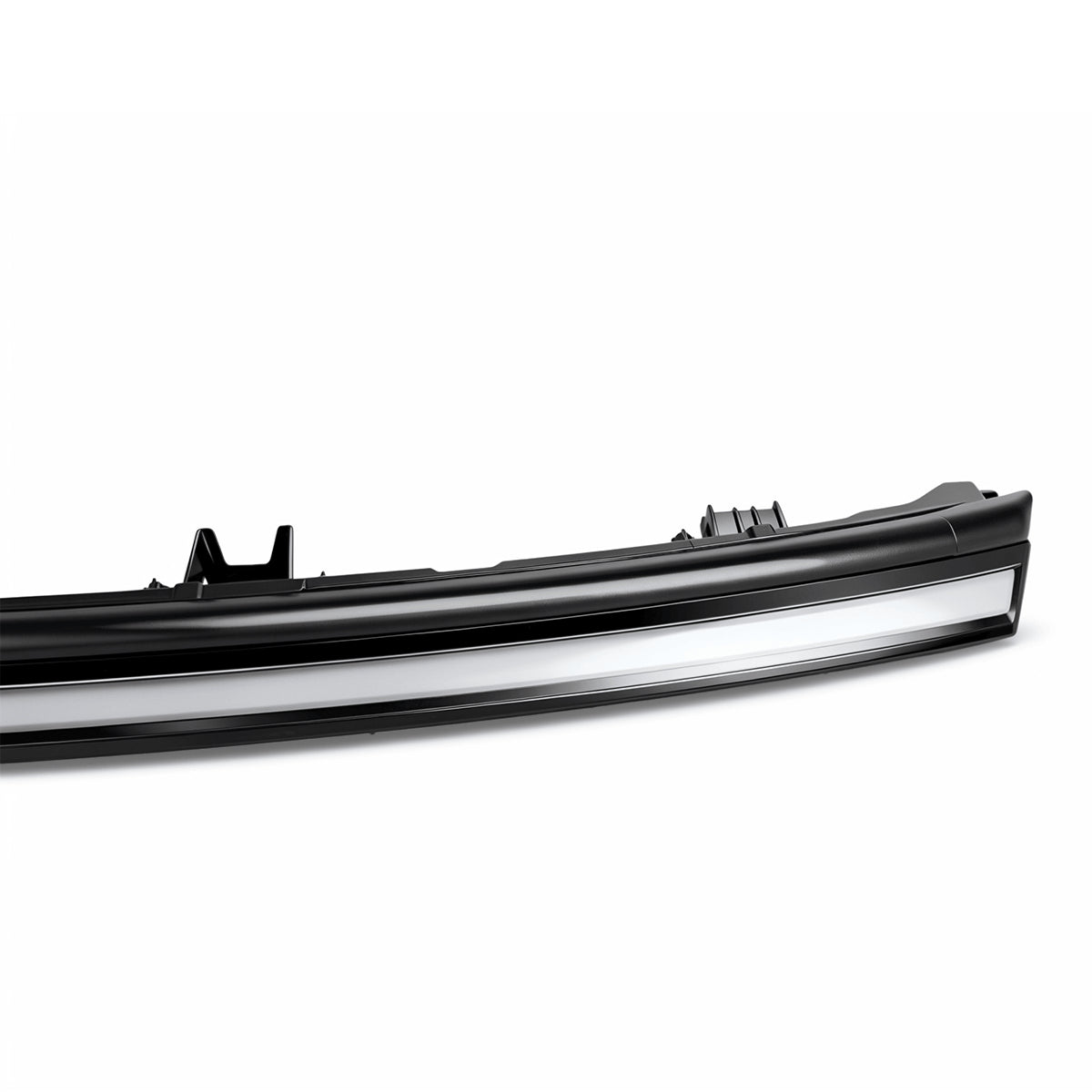

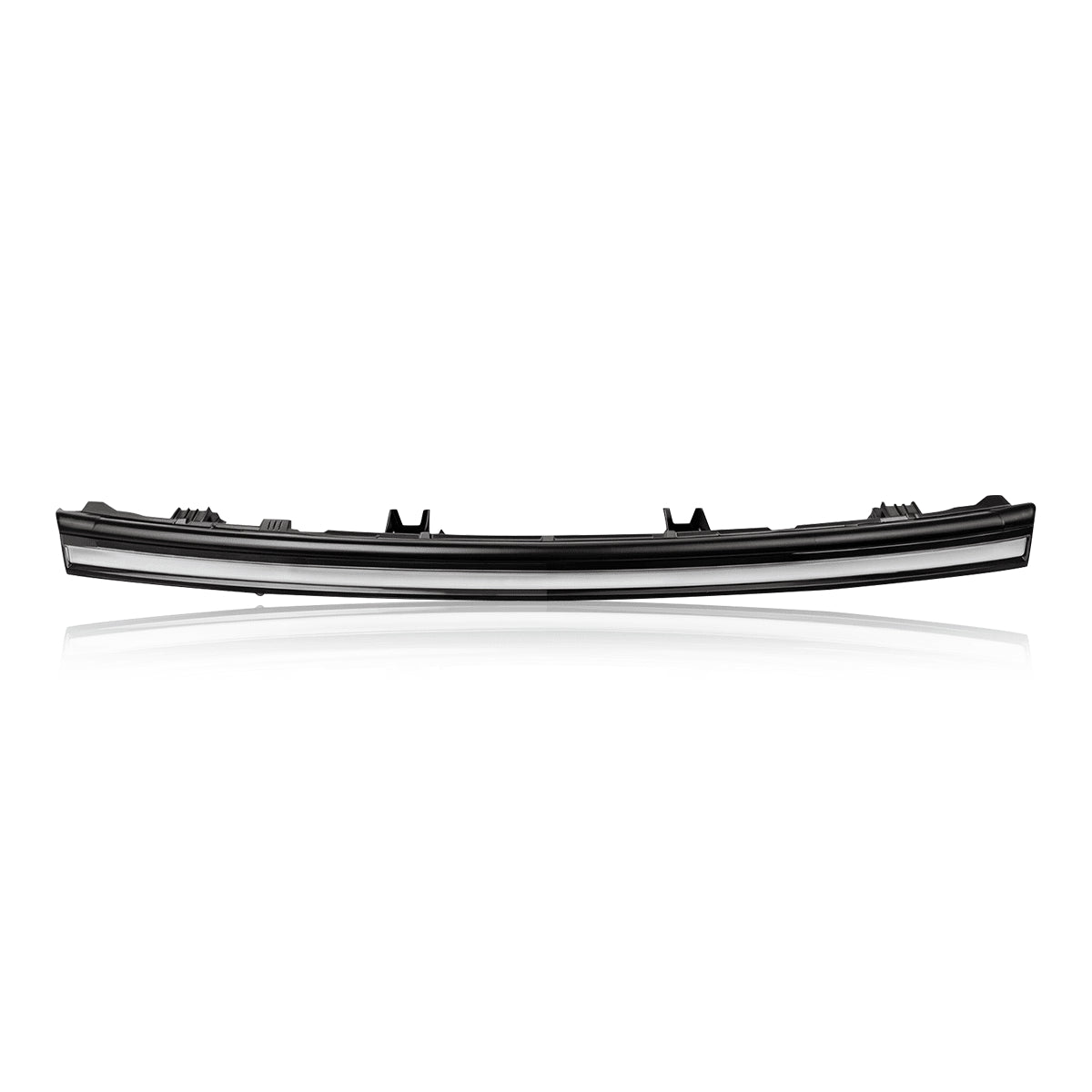

Front Center LED Light Bar Headlight for Model Y Juniper
A direct-fit replacement for the refreshed Model Y Juniper front center light bar, engineered around the factory three-piece lighting layout for precise alignment, factory-style illumination, and plug-and-play installation.
1:1 OEM-Grade Fit
Built around the original Juniper center-bar geometry so the center unit aligns correctly with the factory side lighting and front fascia.
Factory Harness Connection
Uses the original electrical connector and mounting points, eliminating the need for custom wiring or software programming.

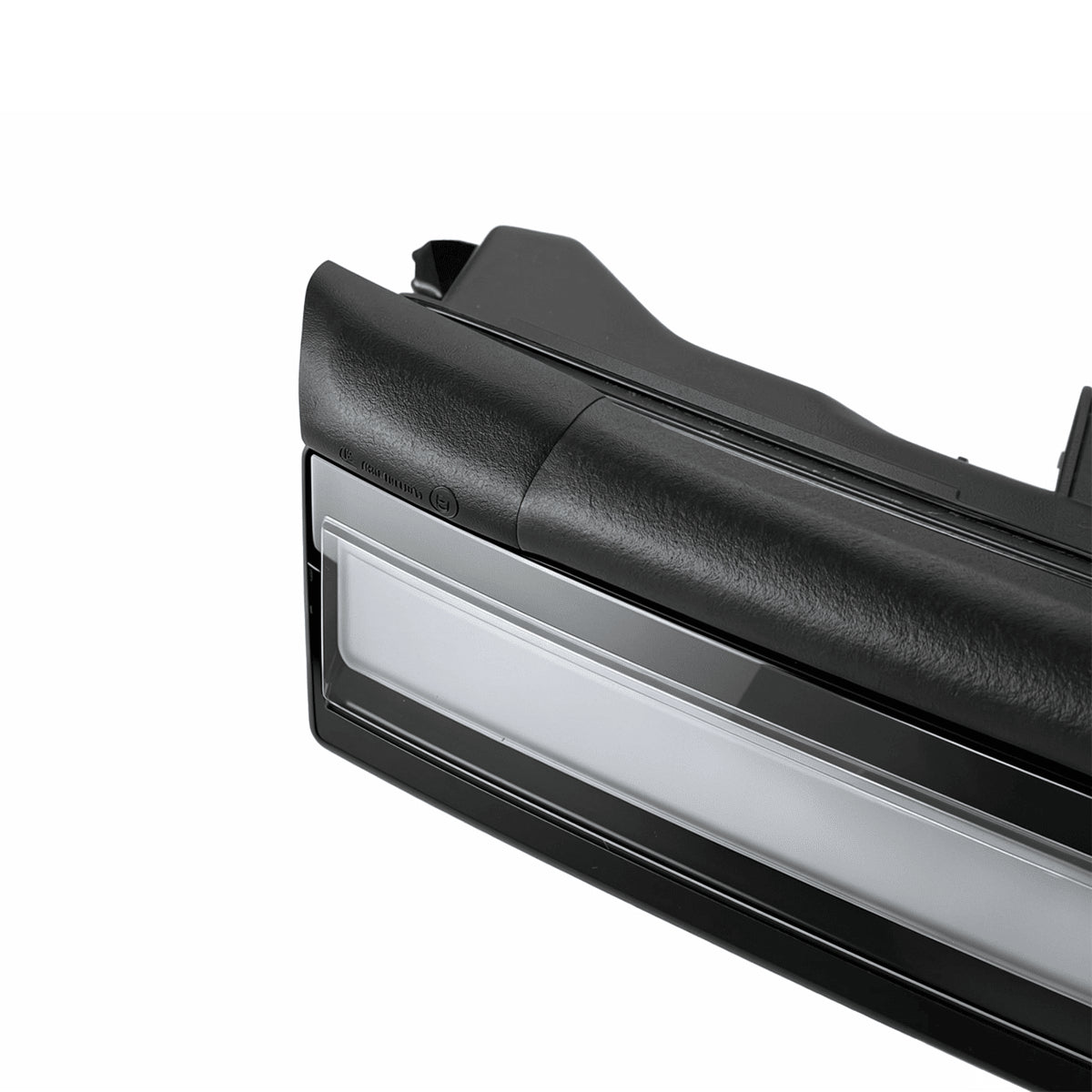

Impact-Resistant Lens
UV-stabilized polycarbonate helps resist stone chips, road debris, surface hazing, and the exposure faced by the front-most lighting element.
Why This Center Light Bar Stands Out

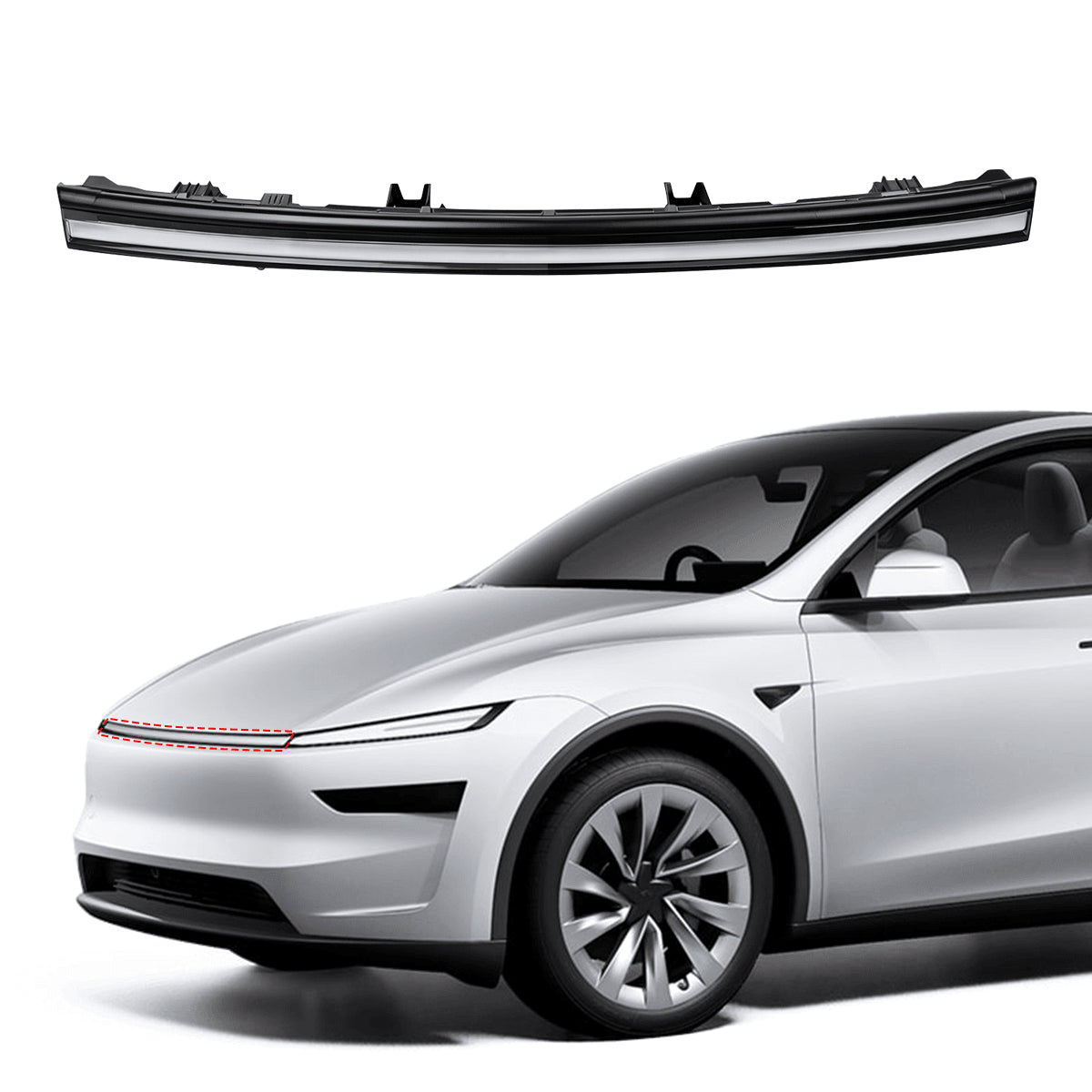

The refreshed Model Y uses a separate center light bar between the left and right front lighting assemblies. This replacement follows that original architecture rather than adapting an older Model Y part.
Replaces the grille-spanning center illumination unit when the original lens or integrated light assembly becomes cracked, pitted, damaged, or no longer functions correctly.
Installs in the factory mounting module using four 10mm bolts, preserving the original mechanical attachment points.
Internal electronics are designed to communicate with the Model Y Juniper's native lighting system without additional coding, flashing, or aftermarket control modules.
Because the center light bar sits directly across the front fascia, it is highly exposed to stones and highway debris. Replacing only this unit can restore the front lighting appearance without replacing the side headlights.
Replace the Center Bar Separately
The Model Y Juniper center light bar and the lower side headlight assemblies are separate components. If the center bar alone is damaged, this unit allows the affected component to be replaced without unnecessarily changing both side headlights.
OEM-Style Construction
Confirm Fitment Before Ordering
Compatible
Tesla Model Y Juniper refresh — 2025–2026.
Not Compatible
Pre-refresh Model Y 2020–2024 uses a different front fascia, wiring structure, and lighting layout.
Before ordering, inspect your existing center light bar and confirm that its part number contains the root sequence 2038294. Compatible OEM suffixes include 2038294-00-C, 2038294-00-E, and 2038294-00-B.
Plug-and-Play Replacement
Use the center touchscreen to fully power down the vehicle before disconnecting the front lighting harness.
Remove the upper underhood storage liner to expose the light-bar connector and original mounting area.
Unplug the original harness connector and remove the four 10mm bolts securing the existing center light bar.
Seat the new assembly into the factory module, reinstall the four bolts, and reconnect the OEM wiring harness.
Power the vehicle back on and confirm the center position light illuminates correctly and no lighting warnings are displayed.
Specifications
| Attribute | Details |
|---|---|
| Product | Front Center LED Light Bar Headlight |
| Vehicle Fitment | Tesla Model Y Juniper 2025–2026 |
| Placement | Front Center Light Bar / DRL / Position Light |
| OEM Part Numbers | 2038294-00-C / 2038294-00-E / 2038294-00-B |
| Design | Three-Piece Front Fascia — Center Bar Unit |
| Lens Material | High-Impact UV-Stabilized Polycarbonate |
| Electrical Connection | OEM Harness Connector |
| CAN Bus | Designed for Native Tesla CAN-Bus Compatibility |
| Firmware | Tested with Tesla Firmware 2025.x / 2026.x |
| Installation | Plug & Play — 4 × 10mm Bolts + OEM Harness |
Quick Answers
Will this fit a 2020–2024 Model Y? +
No. PN 2038294 is designed specifically for the refreshed Model Y Juniper 2025–2026. Earlier Model Y vehicles use a different front fascia, mounting structure, and wiring layout.
Do I need Tesla software programming after installation? +
No additional vehicle programming is specified for this replacement. It installs using the original harness and native lighting connection.
Why is there a small gap between the center bar and side headlights? +
The Juniper front lighting uses a three-piece design. A small intentional separation exists between the center unit and the side lighting assemblies and is part of the factory layout.
Do I need to replace the side headlights too? +
No. The center bar and side headlight assemblies are separate. If only PN 2038294 is damaged, the center bar can be replaced independently.
What should I check before ordering? +
Confirm that your vehicle is a 2025–2026 Model Y Juniper and inspect the existing component for a part number containing the root sequence 2038294 before ordering.
