AC Lite 50A Smart Level 2 EV Charger | J1772
Couldn't load pickup availability
ℹ️ DESCRIPTION
Upgrade a compatible home charging circuit with the Autel AC Lite Home 50A Level 2 EV Charger. It is built around a compact wall-mounted charger and a fixed 25-foot SAE J1772 cable for convenient reach across a home garage or driveway.
The hardwired 208/240V configuration supports up to 50A or 12kW at 240V when the installation and vehicle both support the full output. Autel lists an appropriately sized 70A branch circuit for full 50A operation; lower adjustable charging-current settings can be configured for qualified installations with less available capacity.
Autel's mobile app supports charging schedules, current adjustment, status notifications and remote monitoring. This AC Lite family offers Wi-Fi, Bluetooth and model-supported connectivity. Dynamic Load Balancing is supported; Adaptive Load Management may require additional compatible monitoring hardware.

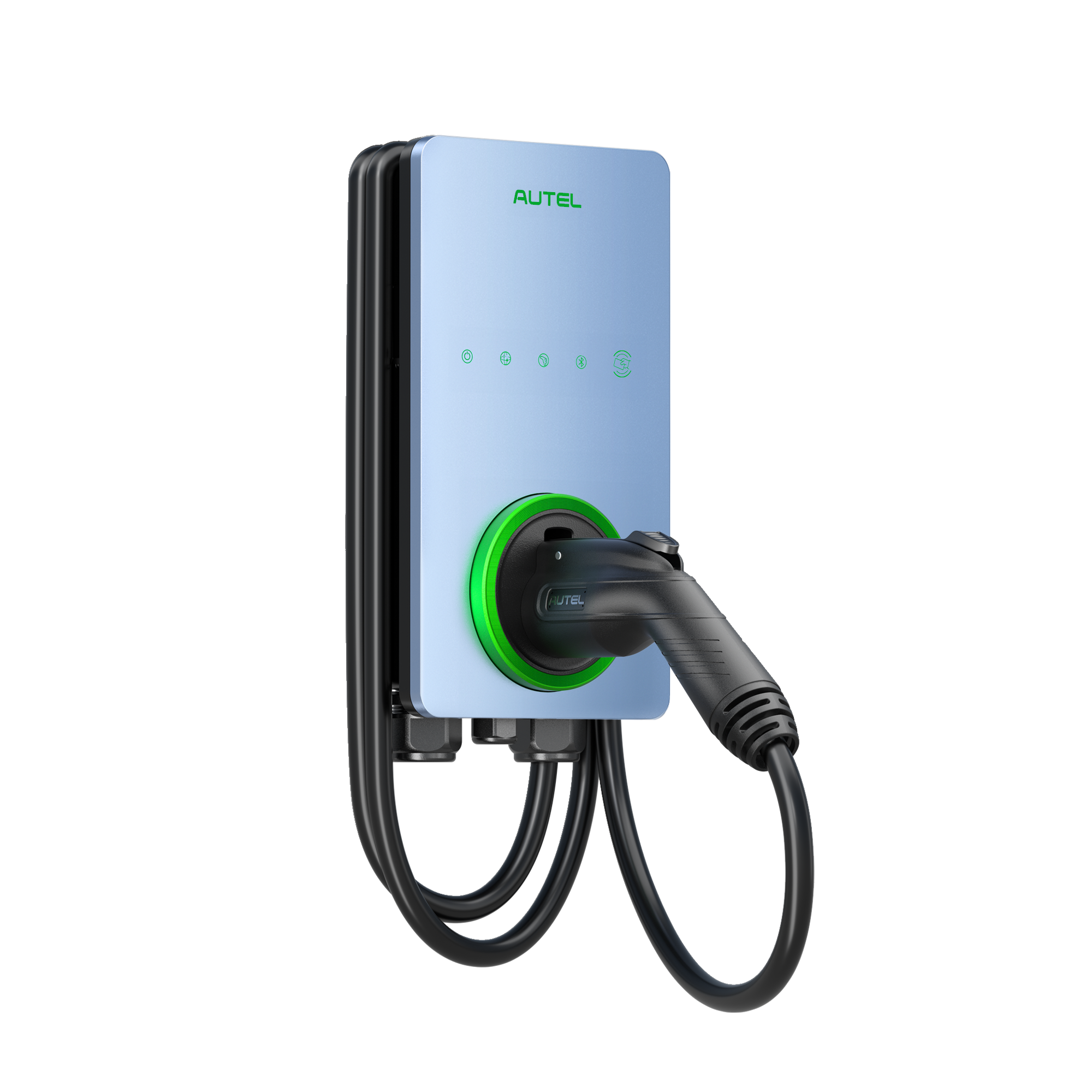

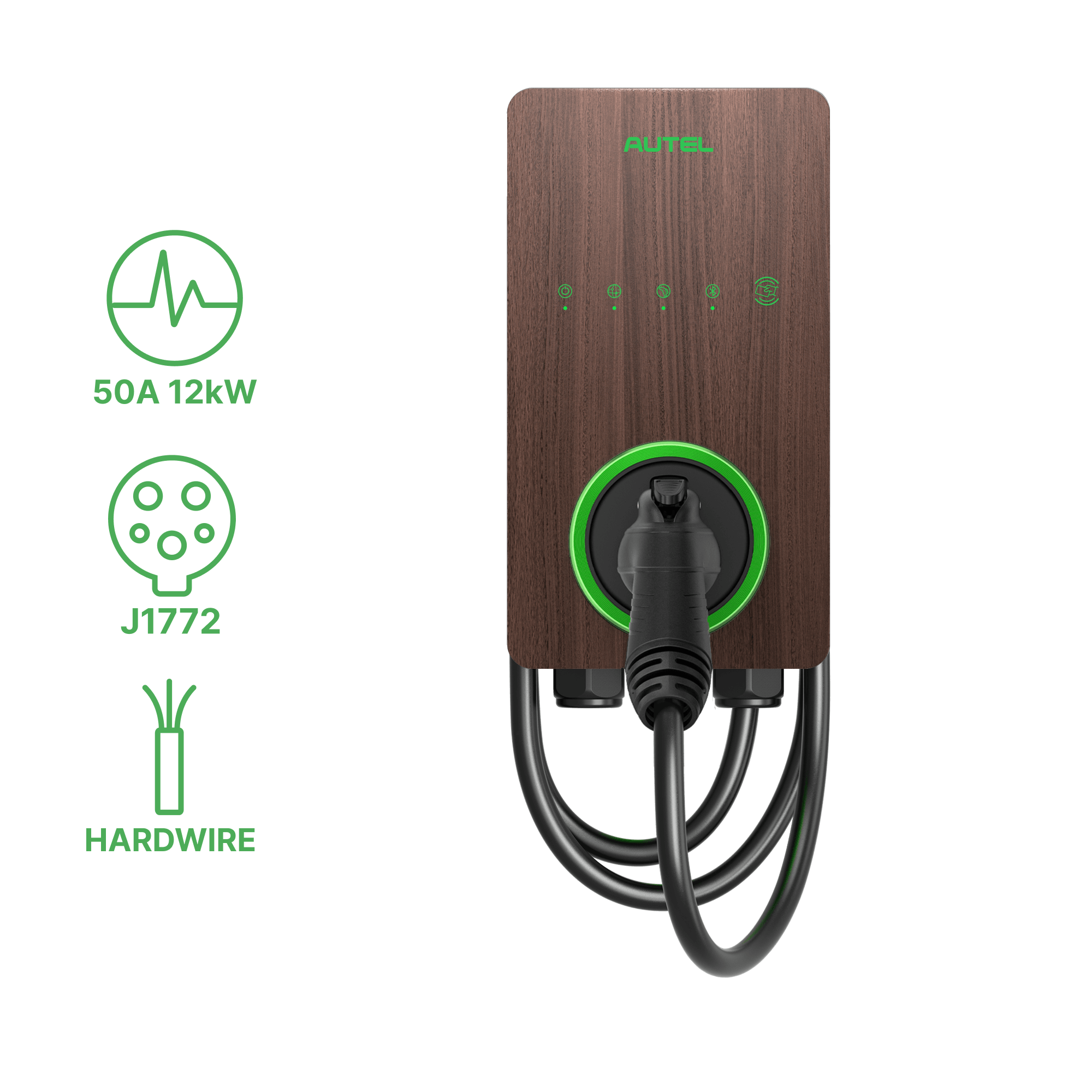

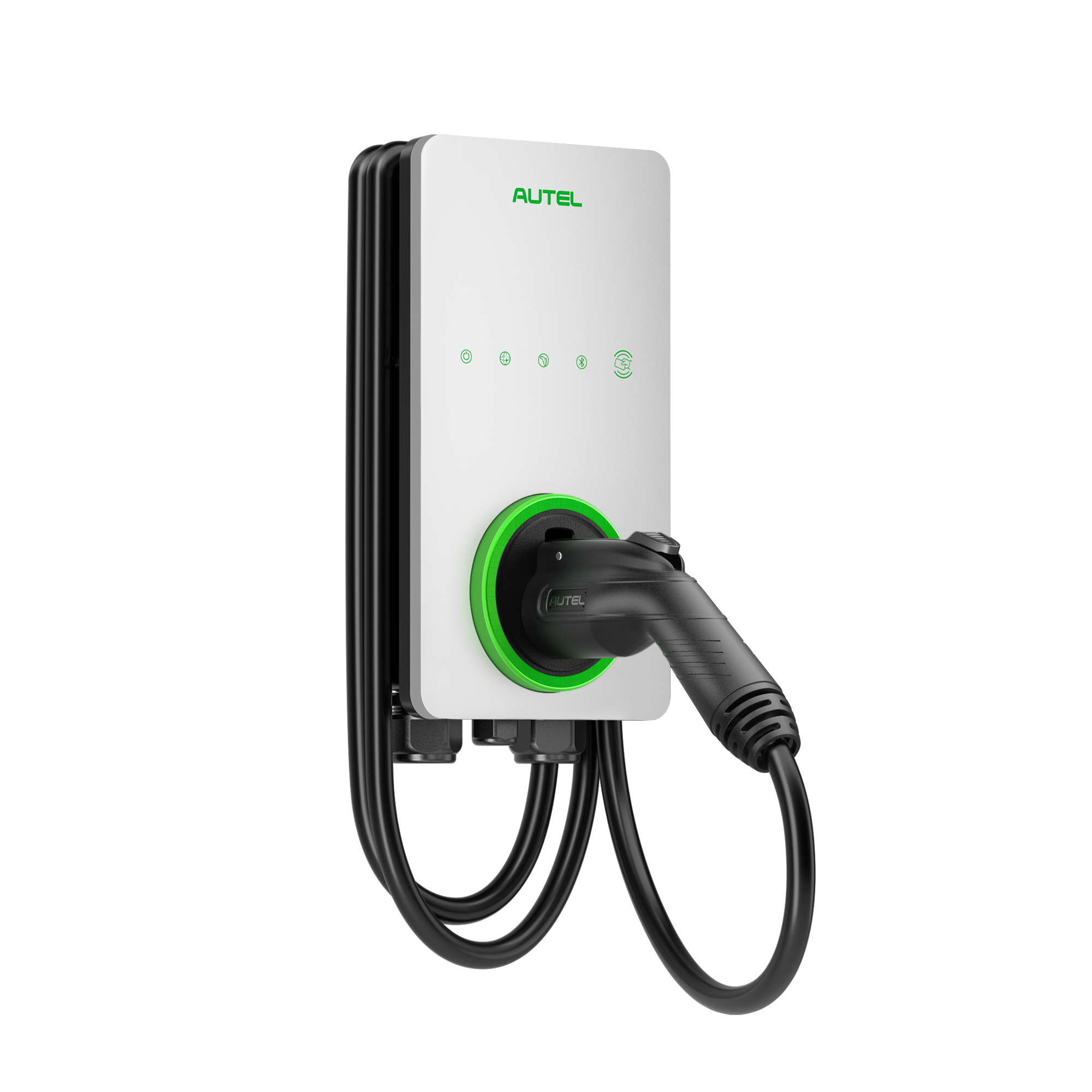

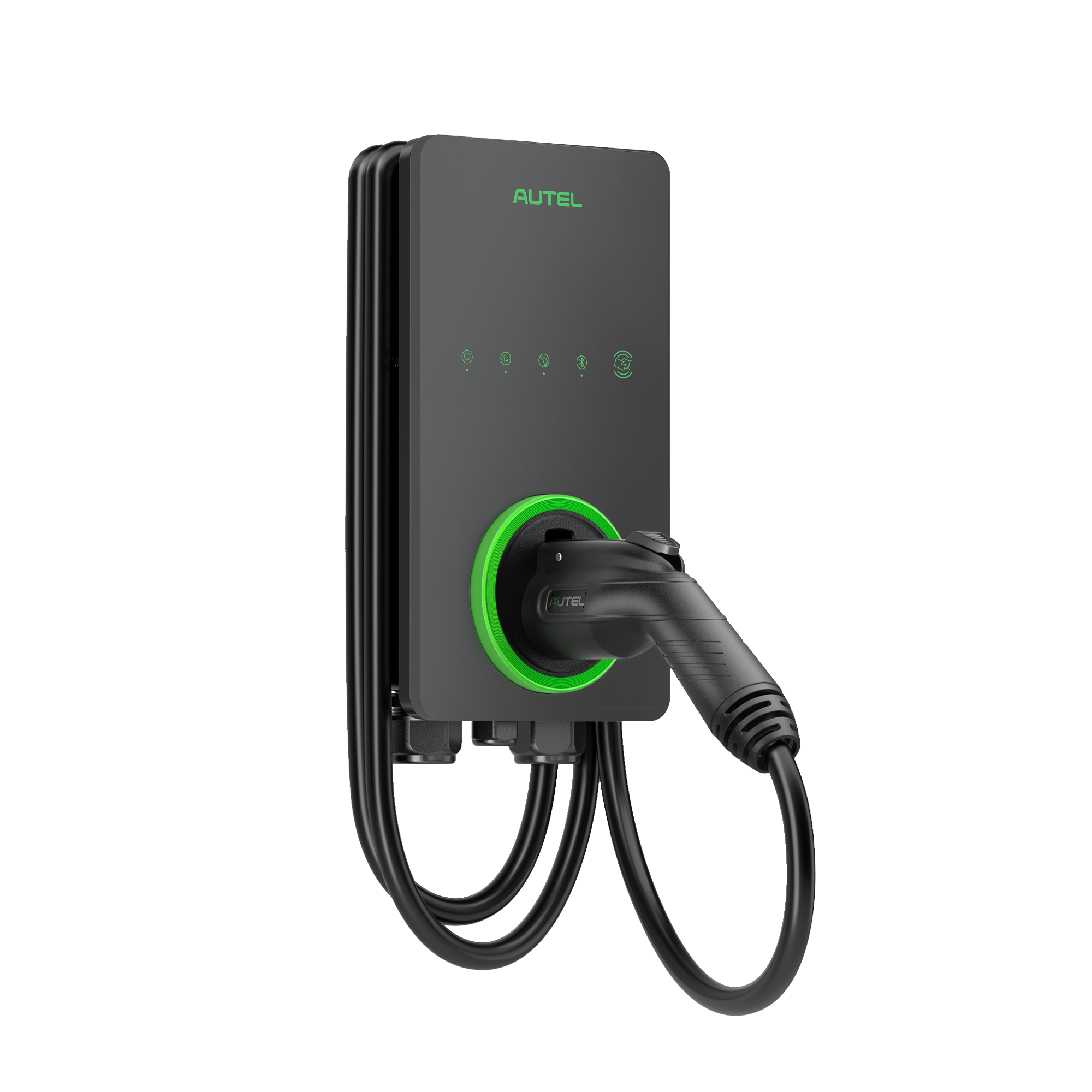

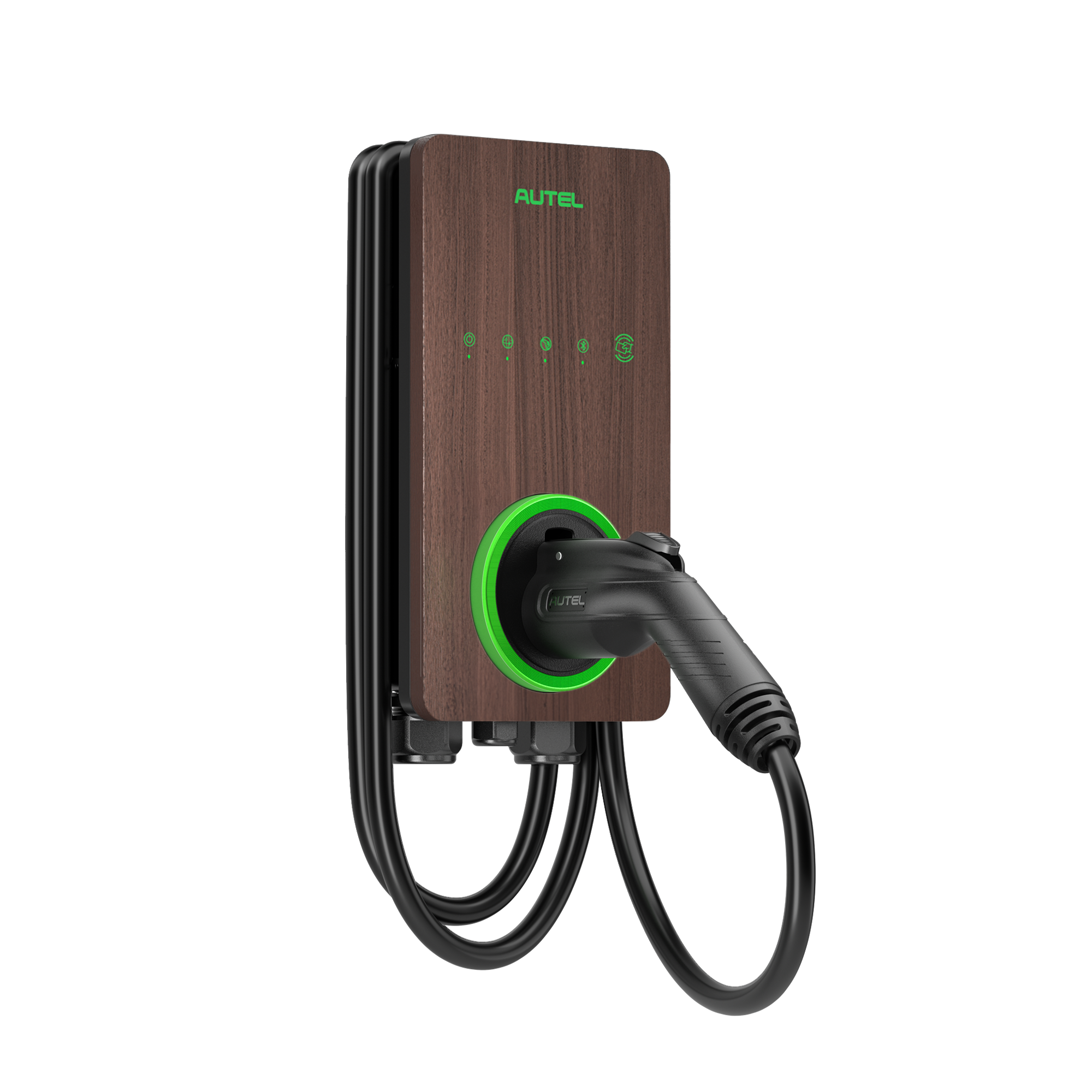

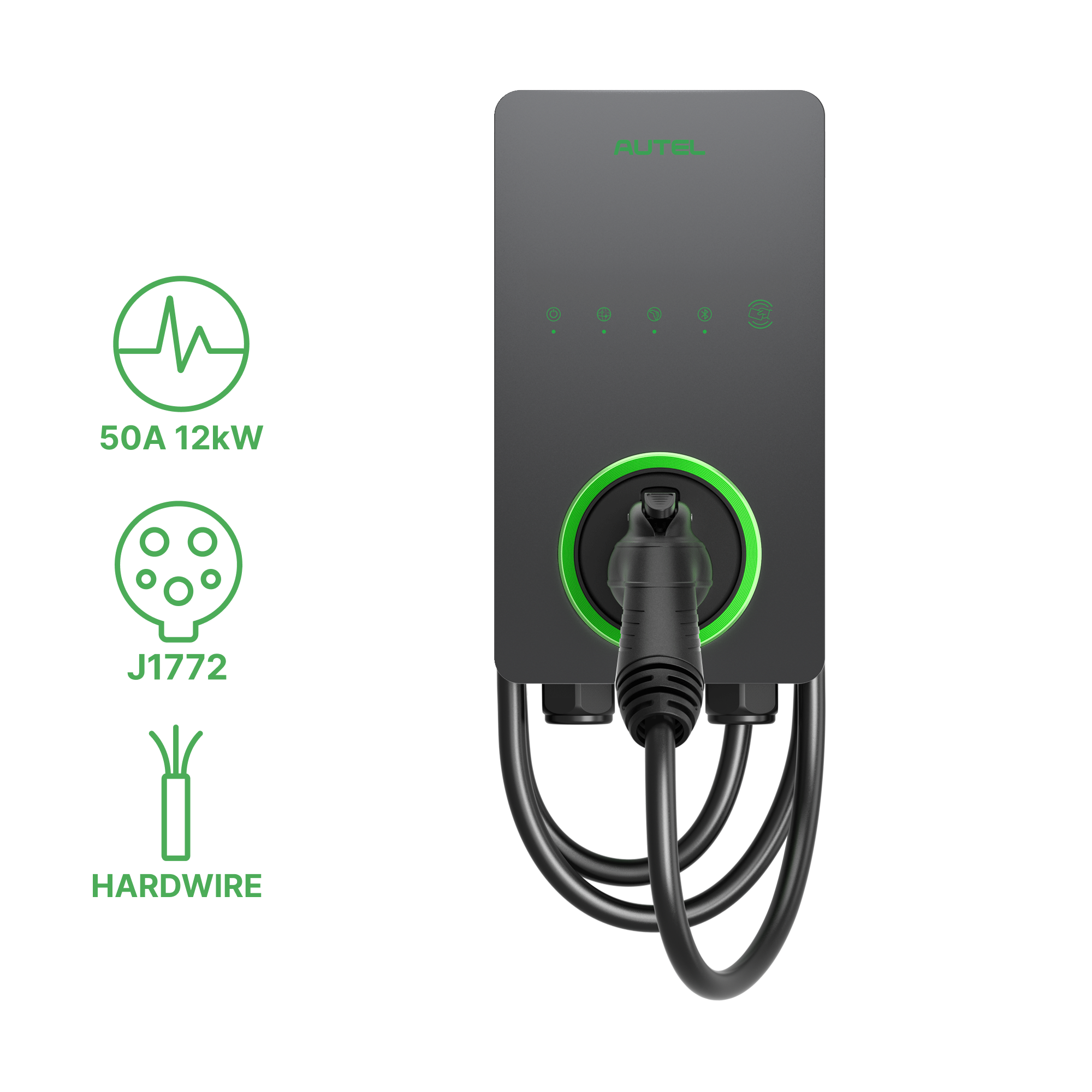

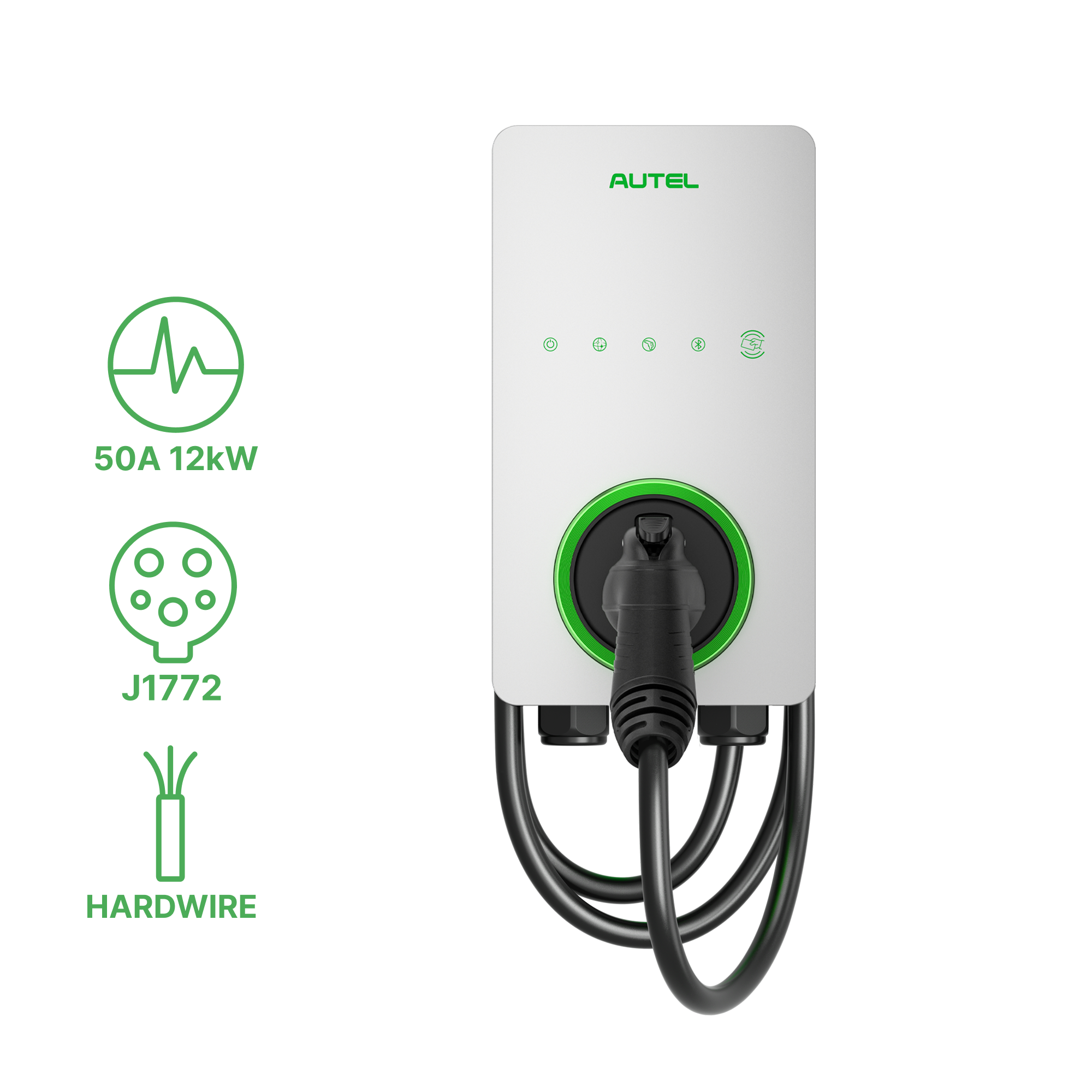

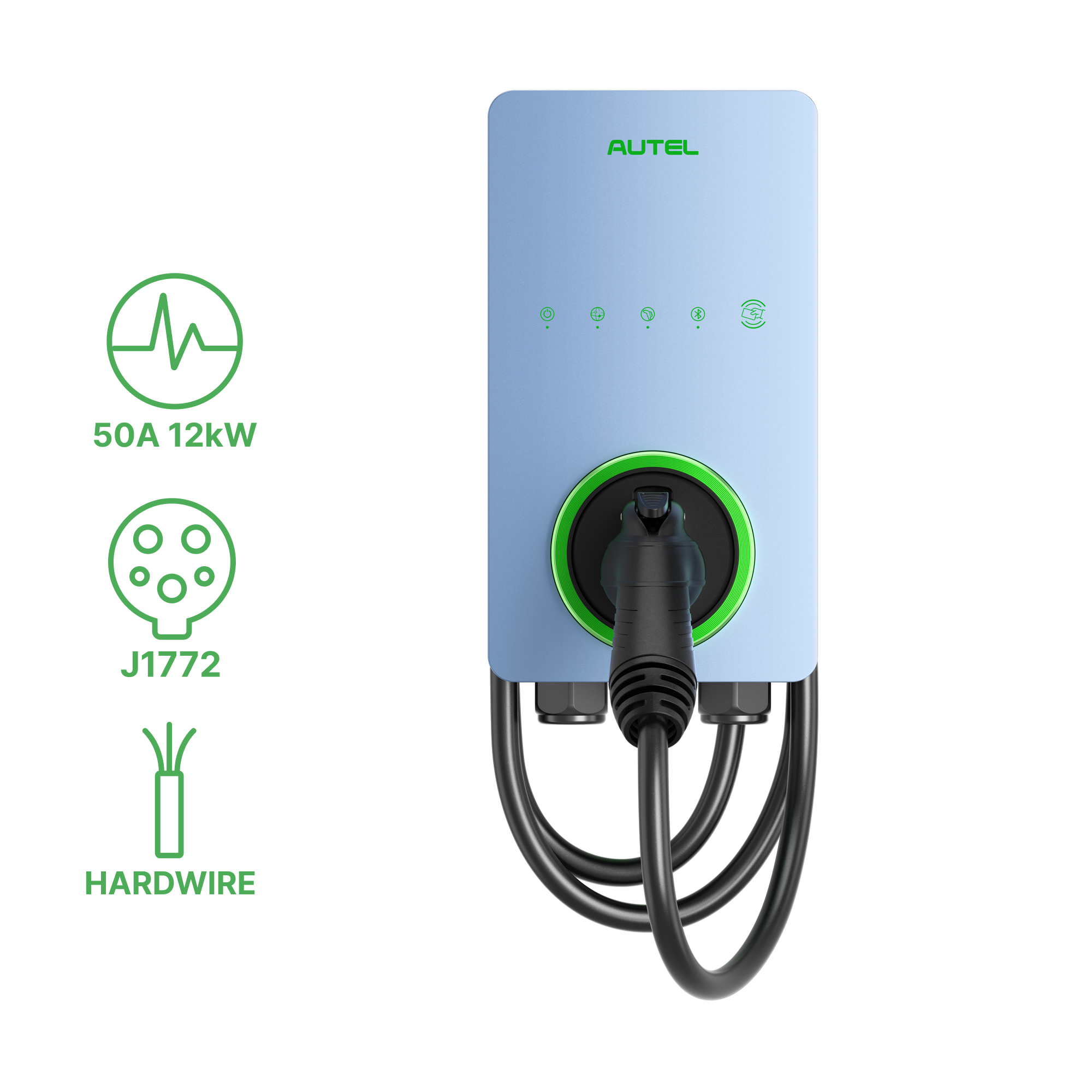

Choose the original Dark Gray, Silver, Wood Grain or Sierra Blue finish. The supplier specifies an IP65 / NEMA 4X enclosure, optional RFID authorization with cards sold separately, and a three-year warranty. It is a J1772 product, not the separately listed native-NACS version.
FITMENT & COMPATIBILITY
✅ EVs and plug-in hybrids with SAE J1772 AC charging inlet
✅ Compatible NACS vehicles using an appropriate separately purchased J1772-to-NACS AC adapter
✅ Properly hardwired 208/240V supply and suitably sized circuit; full 50A output requires the specified circuit capacity
❌ Direct NACS connection without an adapter or unsupported electrical installation
WHAT'S INCLUDED❓
- 1 × Autel AC Lite Home 50A hardwired charging station in selected color
- 1 × attached 25-foot SAE J1772 vehicle charging cable
- Model-specific included mounting and documentation components
- ❌ RFID cards, optional ALM hardware and NACS vehicle adapter are not included
🟰 FEATURES
- 50A maximum Level 2 charging current
- Up to 12kW at 240V
- Hardwired AC electrical connection
- 208/240V single-phase charger configuration
- Suitable circuit required for 50A operation
- 25-foot SAE J1772 charging lead
- Autel Charge mobile app control
- Remote charge status and notifications
- Adjustable charging current
- Scheduled charging support
- Wi-Fi and Bluetooth connectivity
- Dynamic Load Balancing supported
- ALM requires optional compatible hardware
- Optional RFID card authentication
- Dark Gray, Silver, Wood Grain and Sierra Blue variants
- IP65 / NEMA 4X supplier enclosure rating
- Three-year manufacturer warranty
