AC Lite 40A Smart Level 2 EV Charger | J1772
Couldn't load pickup availability
ℹ️ DESCRIPTION

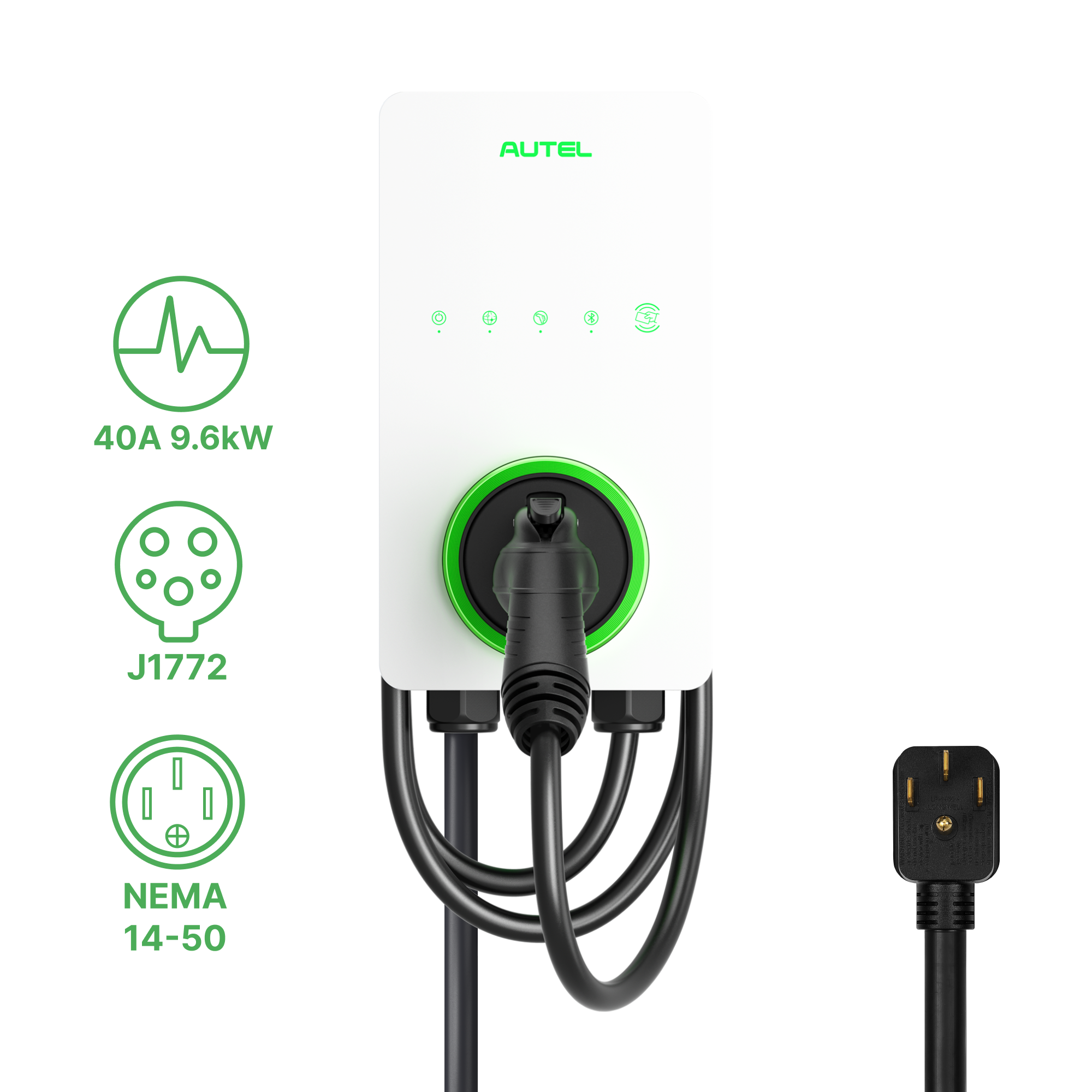

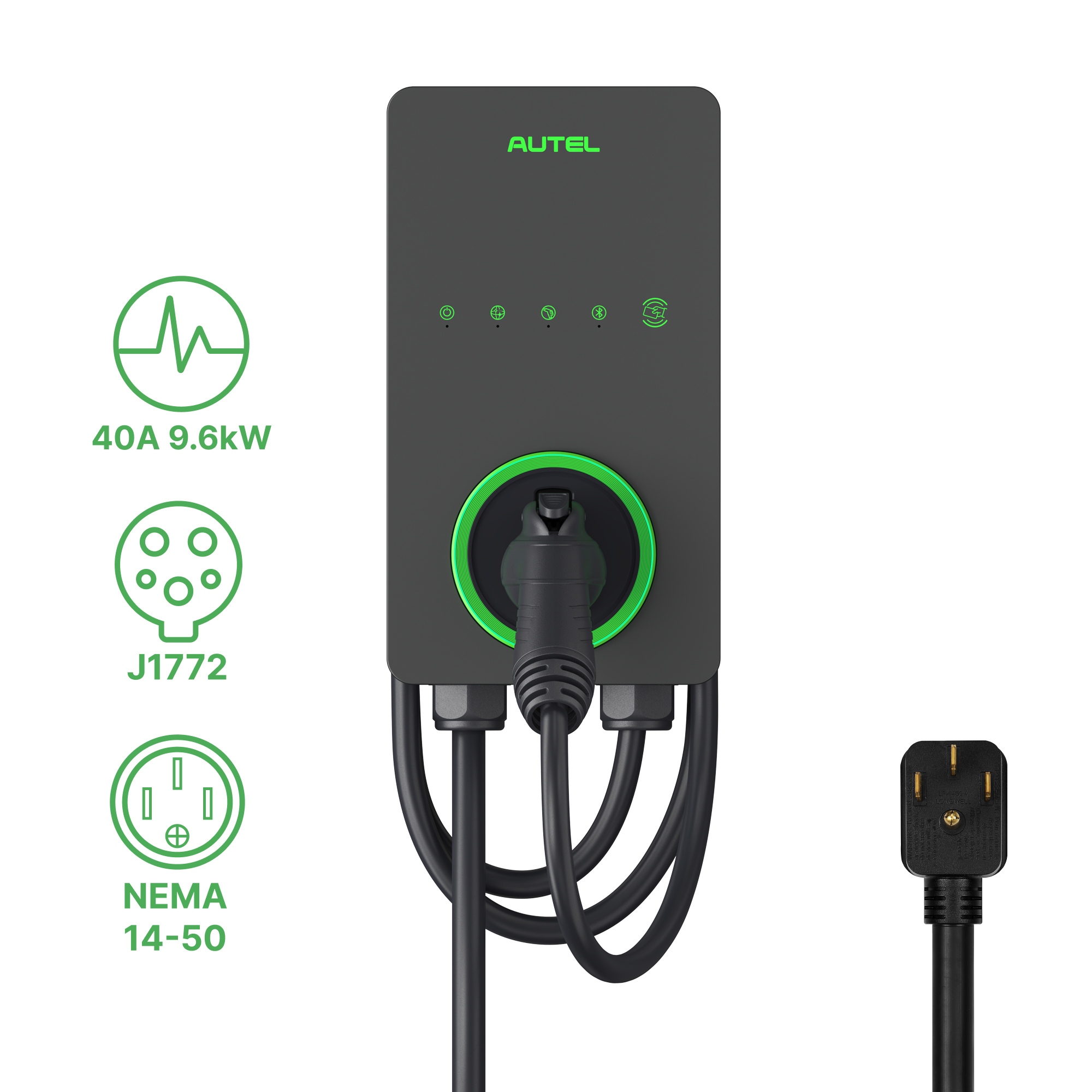

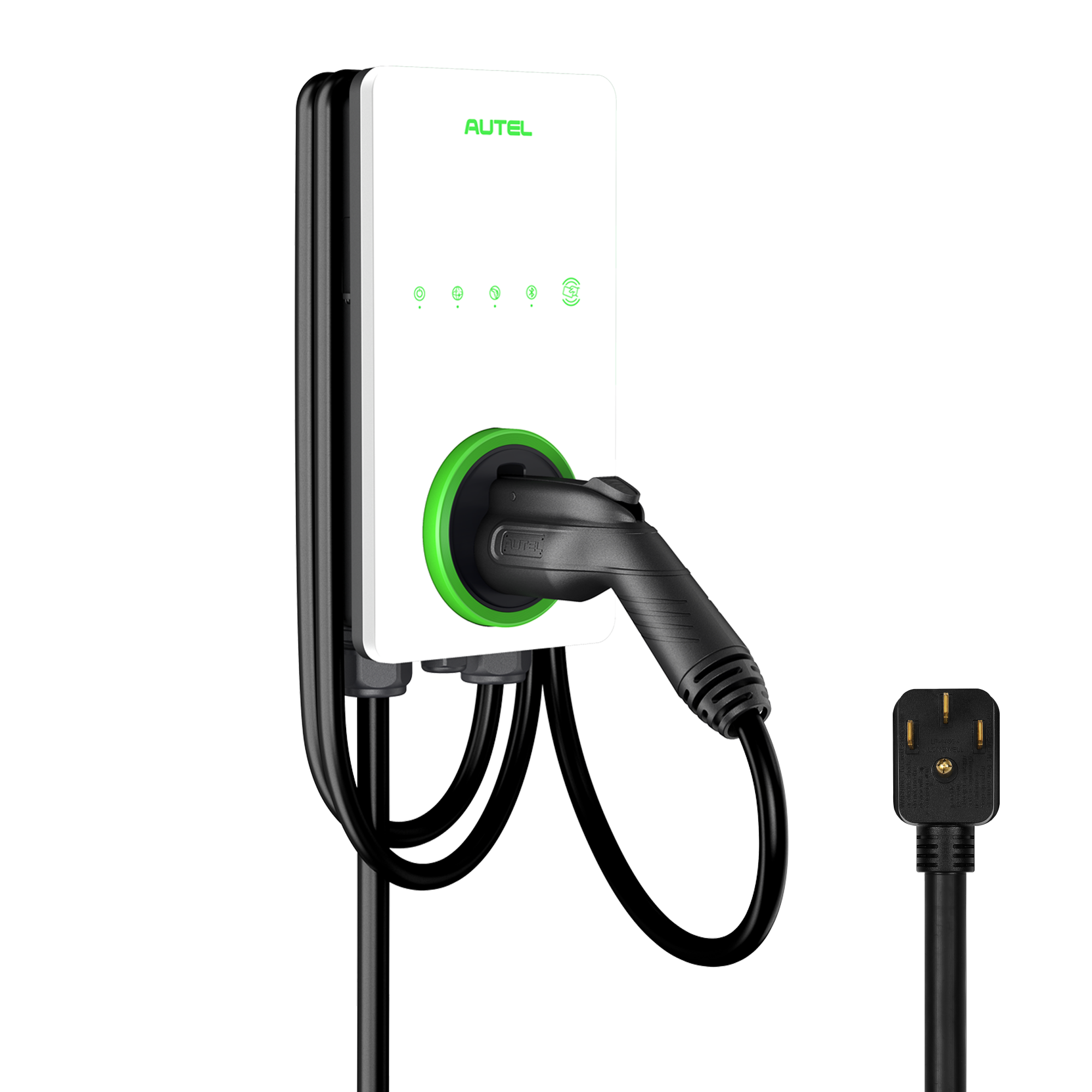

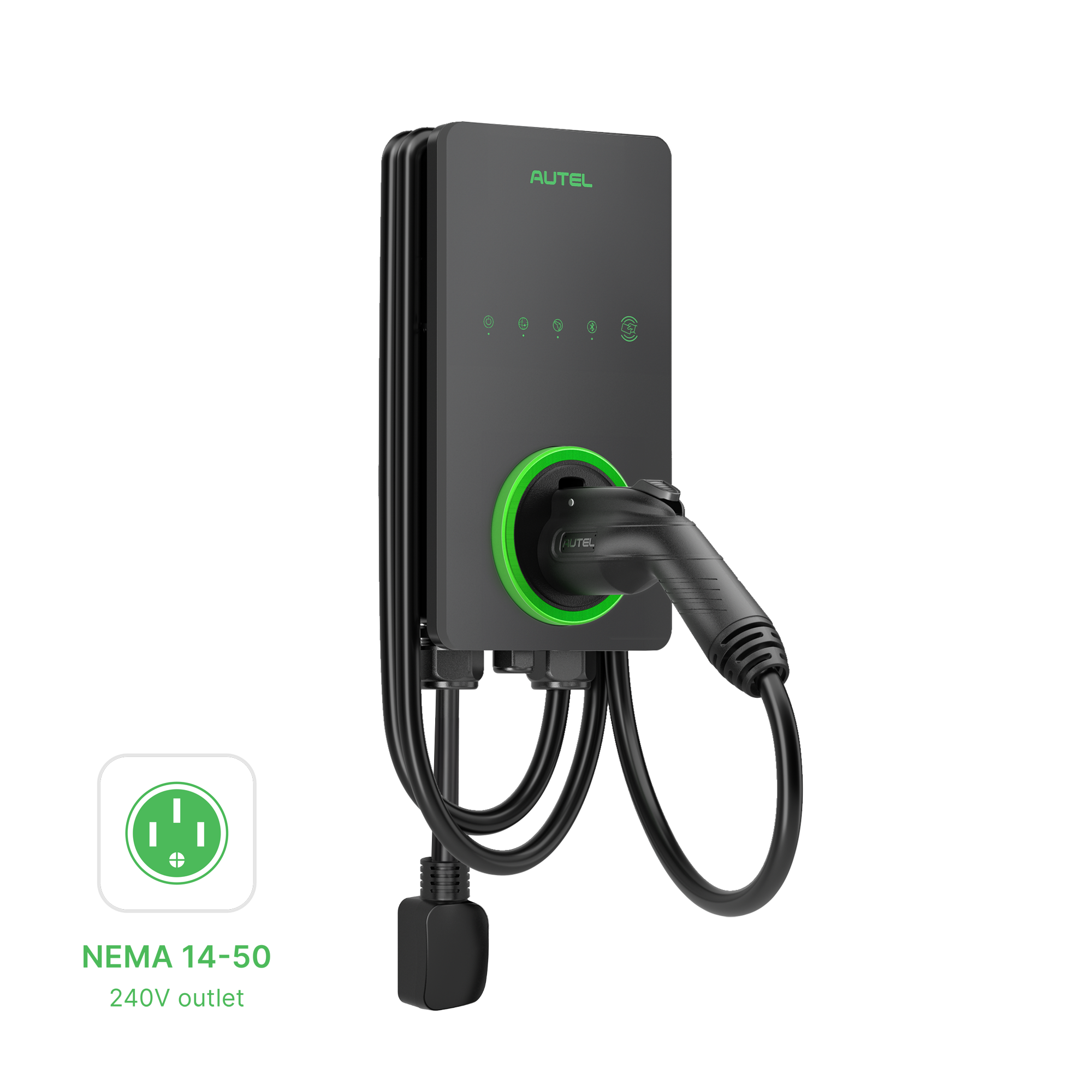

Bring practical Level 2 charging to your garage or driveway with the Autel AC Lite Home 40A EV Charger. Its wall-mounted design combines a compact housing, a permanently attached 25-foot SAE J1772 charging cable, and intelligent controls for everyday EV and plug-in hybrid charging.
The NEMA 14-50 plug-in connection supports up to 40A / 9.6kW at 240V on a correctly installed, appropriately rated 50A branch circuit. Actual charging speed depends on the vehicle's onboard AC charger, supply voltage, circuit capacity and charging settings; advertised miles of range per hour are estimates rather than a guaranteed result.
Use the Autel Charge app and supported Wi-Fi or Bluetooth features to start, stop, monitor and schedule charging. The charger offers adjustable output and optional RFID access control when compatible access cards have been purchased and configured separately. App features and networking requirements can vary by software version.
Choose Dark Gray or White using the original Shopify Color option. Autel specifies an IP65 / NEMA 4X enclosure and a three-year manufacturer warranty for this AC Lite family. The J1772 connector fits matching vehicle ports directly; NACS vehicles may require a separately obtained compatible AC adapter.
FITMENT & COMPATIBILITY
✅ J1772-equipped North American EVs and plug-in hybrids that support Level 2 AC charging
✅ NACS-equipped vehicles with a separately obtained compatible J1772-to-NACS AC adapter
✅ 208/240V supply and properly wired NEMA 14-50 outlet; 50A circuit for full 40A operation
❌ Direct NACS connection without an adapter, or use from an undersized/damaged receptacle
WHAT'S INCLUDED❓
- 1 × Autel AC Lite 40A wall-mounted charging station in selected Dark Gray or White
- 1 × attached 25-foot SAE J1772 charging cable and NEMA 14-50 input cord
- Factory-supplied wall mounting and documentation components as provided for this model
- ❌ RFID cards and J1772-to-NACS adapter sold separately
🟰 FEATURES
- 40A maximum Level 2 AC charging output
- Up to 9.6kW power at 240V
- NEMA 14-50 plug-in supply connection
- 50A branch circuit needed for full 40A output
- 25-foot attached SAE J1772 cable
- Autel Charge mobile app controls
- Supported Wi-Fi connectivity
- Supported Bluetooth connectivity
- Remote charging status and notifications
- Charging schedules and current adjustment
- Optional RFID authentication
- RFID cards not included
- Original Color variants Dark Gray and White
- IP65 / NEMA 4X supplier enclosure rating
- Indoor/outdoor-rated charger design
- Three-year Autel manufacturer warranty
- Vehicle charging speed depends on actual EV limitations
